| Brand Name: | Swift |
| Model Number: | SWT36200FC |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10 working days |
| Payment Terms: | 100% T/T payment before ship |
2400pcs/h Dia 42mm Cable Bundle Machine 1.3S Wire Tie Tool
1800pcs/H Cable Tie Machine For Bundle Coils Polyester Monofilaments

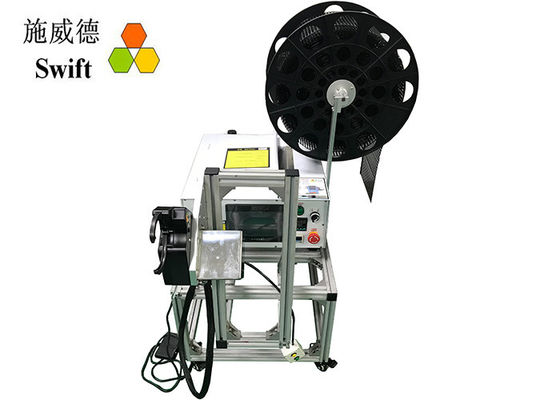

SWT36200FC is with a fixed cable tie gun. After pedal the pedal, cable ties would be transferred into the tie gun and tied tightly, cut off.
Data of automatic cable tie bundle tool
| 1. Automatic cable tie bundle tool | |
| Model | SWT36200FC |
| Bundle speed | 1.3S per cable tie, including wrapping, tightening and cutting |
| Bundle productivity | 1800pcs-2400pcs including the time of picking and placing objects |
| Applicant cable ties | C36200 |
| Length of cable tie | 200mm |
| Head size of cable ties | L6.7*W6.6*H4.6mm |
| Applicant bundle diameters for wire | Ø2mm – Ø42mm |
| Applicant bundle diameters for tubes | Ø2mm – Ø40mm |
| Machine size | L71 * W47 * H23cm |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 0.5Mpa |
| 2. Trading information | |
| Seaport | Shenzhen, Guangzhou |
| Lead time | 10 working days |
| Packing | Packed in wooden cases |
| Transport ways | By air. DHL |
Features of automatic cable tie bundle tool
1. Automatic reel cable tie machine is very small and light.
2. This cable tie machine uses reel cable ties C36200. And there are 4,000pcs per reel.
3. Once tread foot pedal, cable ties would be wrapped, tightened and cut off in 1.3S.
4. The tying forces are adjustable from 20N to 80N.
5. The tie gun can bundle objects with different diameters.
6. The max bundle diameter is 42mm.
7. The cable tie machine requires voltage AC220V and pneumatic pressure 5kg/cm²
Advantages of cable tie bundle machine
1. Operator doesn’t have to load nylon cable ties often. Because there are 4,000pcscable ties in a roll. He just needs to load it one time.
2. Automatic reel cable tie tool is small and it is easy to move. The weight is 30kg.
3. Cable tie gun could be applied to full automation line.
Applications
1. Coils of polyester monofilaments
2. Large capacitor of washing machine
Packing information
| Item | Qty |
| Host machine | *1 |
| Fixed cable tie gun | *1 |
| Support for reel cable ties | *1 |
| Big frame(Option) | *1 |
| English manual | *1 |
Packing size: L95 * W58 * H110cm/wooden case, G.W.: 84KG, N.W.: 64KG
FAQ
1. Do you have a cable tie gun with battery?
No, we don’t have. All cable tie guns are connected to the host machine.
2. Does the tie gun bundle diameter up to 80mm?
No, the max bundle diameter is 42mm.
3. What warranty does the tie gun machine offer?
1 year warranty. Non-human intentional damage, free maintenance during the warranty period
4. Does automatic cable tie machine need air sources?
Yes, pneumatic pressure is 5kg/cm²
Video
Video
Video
Video
Video
|
