| Brand Name: | SWIFT |
| Model Number: | SWT36120F |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10 - 15days |
| Payment Terms: | T/T |

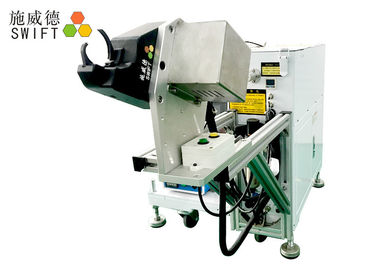

Adjustable Binding Forces PVC Soft Pipe 1.0s Wire Tie Tool
PVC Soft Pipe Bundling Automatic Wire Tie Tool In Strong Binding
There are three main advantages to bundle by using automatic cable tie machine. One is the strong bundling force. Other one is the fast bundling speed. The last one is it could automatically bundle the plastic pipe.
SWT36120F details
1. The tool head would be fixed in the bench or fixed in the customized frame.
2. Tread the pedal to start to bundle. It allows hands-free operation.
3. With a temperature control system. You could open it in the cold winter.
4. With a data hose, a feeding hose
5. With 4wheels, it is easily to move.
SWT36120F technical parameters
| Automatic cable tie system - SWT36120F | ||||||
| Model | Cable tie size | Qty in vibration bowl | Operation speed | Pneumatic pressure | Total Power | |
| SWT36120F | Width | 3.6mm(0.14＂) | 200pcs better | 1S | 6kg/cm² | 1,000W |
| Length | 120mm(4.7＂) | |||||
| Tie thick | 1.2mm(0.05＂) | |||||
| Tensile strength | 12kg | |||||
| Power supply | AC220V, 50/60Hz, Euro plug or others | |||||
Other data
| Automatic cable tie system - SWT36120F | ||
| The host machine | Weight/kg | 160kg |
| Size/cm | L89 * W90 * H79cm | |
| The tool head | Weight/kg | 4kg |
| Size/cm | L28.4* W24.0 * T15cm | |
| Total N.W. | 164kg | |
SWT36120F advantages
1. With memory function. It could count and record the quantity of cable ties that have been bundled successfully.
2. Using bulk cable ties to bundle wire harness or medical PVC soft pipe etc..
3. The bundling force effect is better than the handheld type.
4. The bundling wire max diameter is 22mm.
5. The bundling tube/pipe max diameter is 20mm.
Features

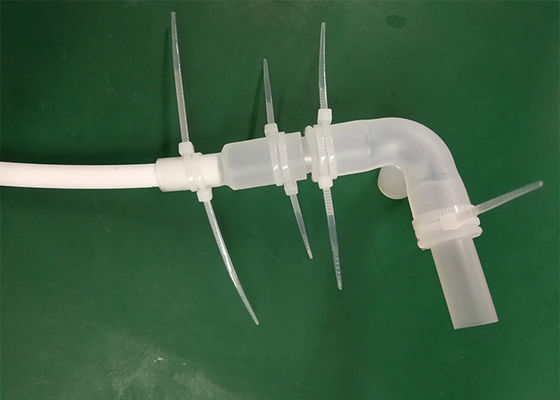

1. Some clients make rubber tubes and assemble them. They use nylon cable ties to fix two tubes or more. Some ask the machine without cutting function. The whole cable tie would be kept. See the video.
2. The binding forces are adjustable. The max force is up to 8kgf.The force can meet clients’ requirement.
Applications
Medical industry: PVC soft pipe/tube, connector
Food industry: bread bags, packing bags, peanut oil bottles, detergent bottles etc.
Motor industry: motor coil
Packing details
Machine would be packed in two wooden cases:
| SWT36120F automatic cable tie machine packing details | ||
| The host machine / wooden case | Weight/kg | 180kg |
| Packing Size/cm | L101 * W105 * H91cm | |
| The vibration bowl / wooden case | Weight/kg | 90kg |
| Packing Size/cm | L80 * W70 * H108cm | |
| Total G.W. | 270kg( estimated) | |
Transportation ways:
By sea, by air, by DHL, UPS, FEDEX
FAQ
Q1. What is MOQ?
A1. 1pcs automatic cable tie machine.
Q2. What is the electric power?
A2. AC220V/AC110V, 50/60Hz
Q3. Do you have English manual?
A3. Yes, we have. Our English manual is a detail instrument.
Q4. Does the machine have wearing parts?
A4. Yes, it has. The small gear wheels would need to replace after 2-3years. But it depends on how often you use the machine and the maintenance.
Video
Video
Video
Video
Video
|
